HCD3e

(Single head 15 needles) (Heavy-duty Industrial)

15 needles
1200 spm
16”x17” Emb. area
11 Package Frames

‍

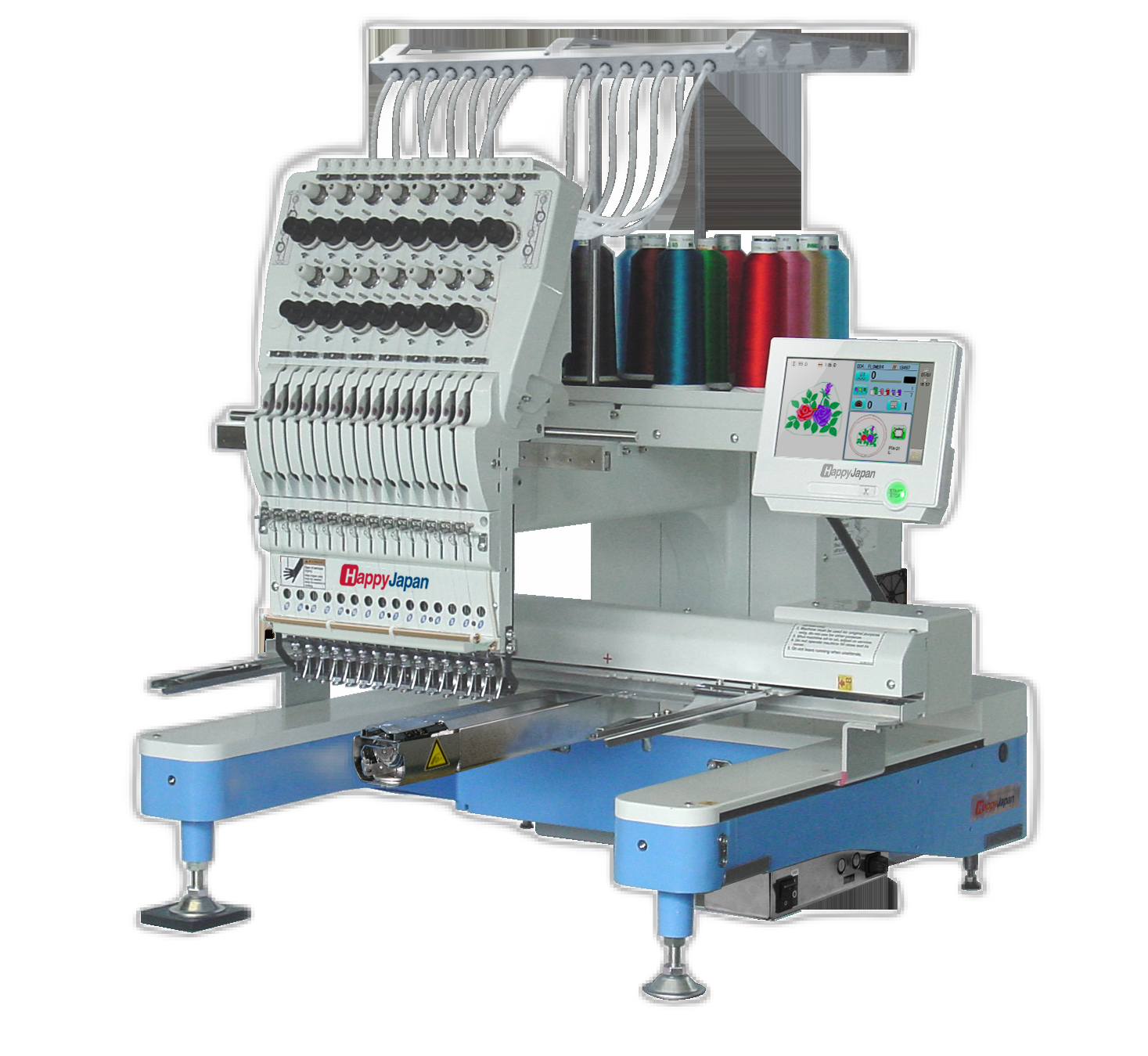

The 15 needle single head embroidery machine HCD3E is HappyJapan’s another long established heavy-duty single head with the large sewing area, durable drive system and speedy performances. HCD3E is able to deal with a wide range of garments from delicate to thick and heavy. Having iron die-cast arms and the body as one unit makes it strong and stable, promising high quality sewing.

Applications

Recommend for costumize embroidery. Sames as above. much more color options up to 15 and wider embroidery area. good for barongs and wedding dress, upgrade can do sequin, embroidery photo stitch, applique

SPECIFICATIONS

Needles:

Heads:

Max Speed:

1,200 stitches/min (flat); 1,000 stitches/min (caps)

Sewing Field:

Flat: 520 × 400 mm; Caps: 360 × 80 mm

Stitch Length:

0.1–12.7 mm

Memory:

40 million stitches

Power Supply:

Single Phase 200–240V

Features:

7" LCD touchscreen, USB/LAN connectivity, automatic thread trimmer, thread break detection, built-in bobbin winder, 12 fonts in 6 sizes, 100 built-in designs

Dimensions:

Approximately 33.3″ W × 30.6″ D × 34.3″ H

Weight:

Approximately 106 kg (233 lbs)
